RED INSULATING TAPE

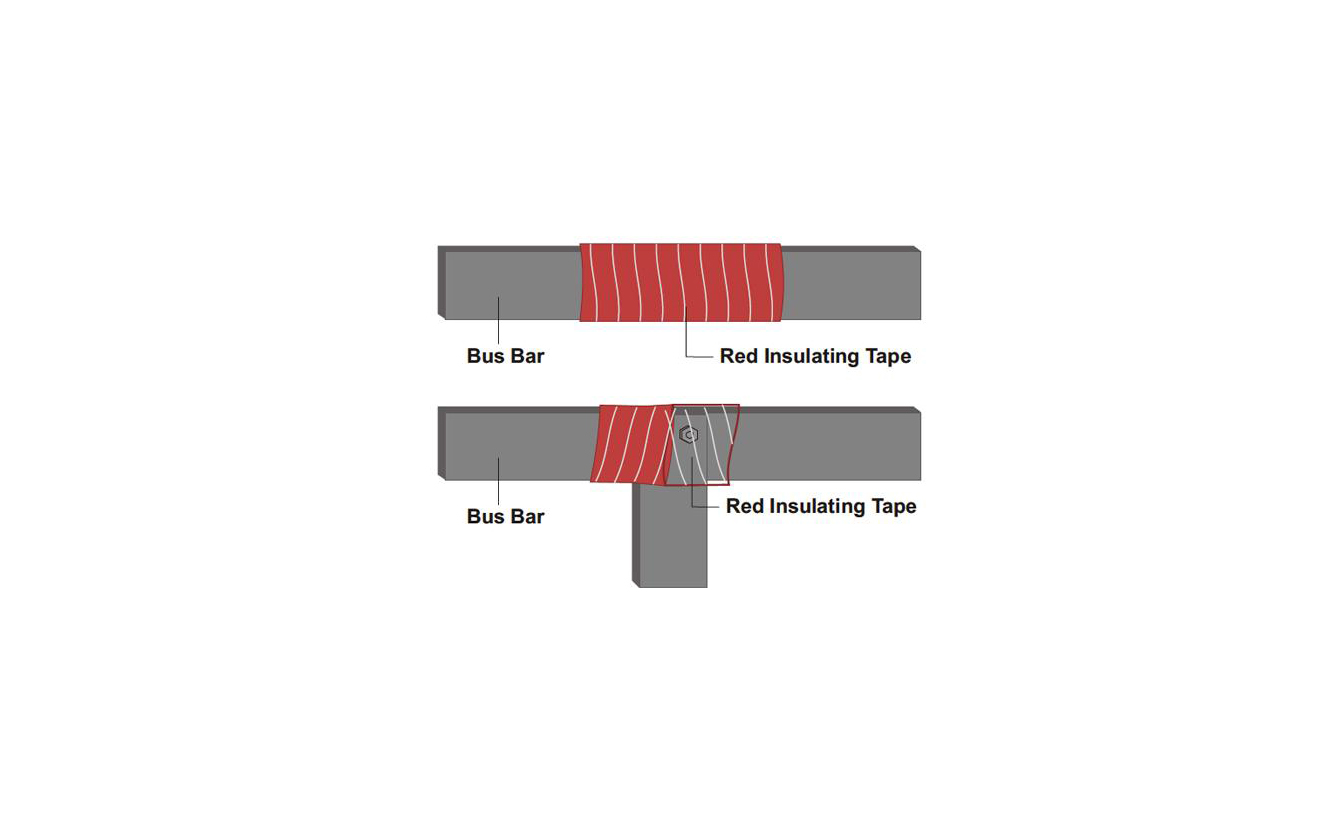

    GBIT is made from radiation cross linked polyolefin. The dual layer structure of insulation / hot melt adhesive make the tape effective pro-vide electric insulation and _ shock protection for voltage up to 24 kV. Widely used to protect com-plex bus bar area sectors where tube products can not be applied.
Silent Features:-

PRODUCT DIMENSIONS

Order Ref. No. As Supplied Wall Width(mm) As Supplied Wall Thickness(mm) Standard length(M)
GBIT-1 25 1.0 + 0.1 5 & 10
GBIT-2 25 1.0 + 0.1 5 & 10
GBIT-4 25 1.0 + 0.1 5 & 10

MATERIAL SPECIFICATIONS

CHARACTERISTIC TEST METHOD VALUE
PROPERTIES
Tensile Strength ASTM D 638 11.8 MPa
Tensile Strength after aging ASTM D 2671 (120 °C, 168 hrs) 10 MPa
Elongation at break ASTM D 638 550%
Elongation at break after aging ASTM D 2671 450%
Dielectric Strenght IEC 243 20KV/MM
Dielectric CONSTANT IEC 250 3.0(Max.)
Volume resistivity IEC 93 10 ohm CM
Flammability ASTM D 2671 SELF eXTENGUISH IN 60 SEC
COPPER CORROSION ASTM D 2671 120°C,168 HRS. NO CORROSION
Water absorption ISO 62/23°C 14 DAYS 0.5%
COLOUR ASTM D 2671 RED
